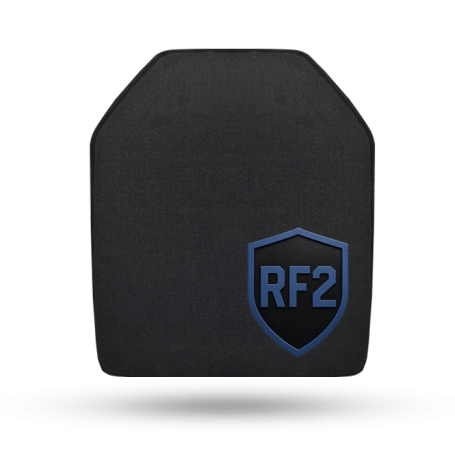

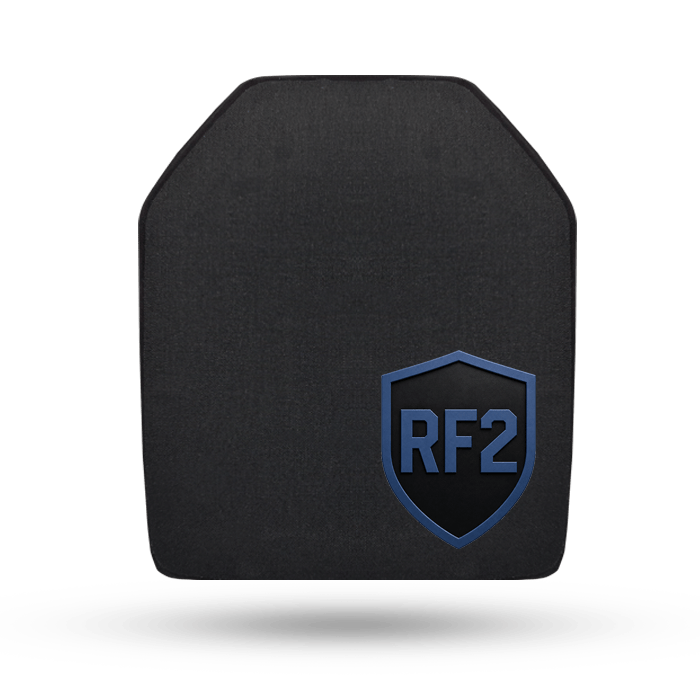

MDR Series RF2 Plate
Lighter. Thinner. Rated to perform when it counts.
The Slate Solutions MDR Series RF2 Plate is engineered to meet the latest NIJ 0101.07 RF2 ballistic standard, providing advanced rifle-threat protection built for today’s evolving operational requirements. Constructed with a high-performance ceramic and UHMWPE composite, this lightweight, multi-curve hard armor plate delivers exceptional ballistic performance, durability, and all-day comfort without sacrificing mobility. Designed for first responders, defense, and public safety professionals, delivering next-generation armor solutions that exceed expectations and perform when it matters most.
Features
- Made with ceramic and UHMWPE materials which are processed to create a lighter, thinner, high-performing plate
- NIJ 0101.07 RF2, Model RF2-MDR
- Multi-curve design conforms to the body’s contours for enhanced comfort and fit
- Rugged, reliable, and stress-fracture resistant
- Fully sealed to protect against liquids, chemicals, and harsh elements
Specifications
- NIJ RF2-MDR
- Stand alone
- Multi-curve
- Thickness: 1”
- 10-year warranty
Plate Cuts
Full Cut
Shooter Cut
SAPI Cut
Certification Test Results
| Threat | Test | Result | |
|---|---|---|---|
| 7.62 mm x 51 mm, 149gr. M80 Ball | 7.62 mm x 51 mm, 149gr. M80 Ball | P-BFS | 33.1 mm |
| 7.62 mm x 51 mm, 149gr. M80 Ball | V50 | 3422 ft/s (1043 m/s) | |
| 5.56 mm x 45 mm, 61.8gr. M855 | 5.56 mm x 45 mm, 61.8gr. M855 | P-BFS | 12.4 mm |
| 5.56 mm x 45 mm, 61.8gr. M855 | V50 | 4335 ft/s (1321 m/s) | |
| 7.62 mm x 39 mm, 122.7gr. MSC Type 56 Factory 31 | 7.62 mm x 39 mm, 122.7gr. MSC Type 56 Factory 31 | P-BFS | 18.8 mm |
| 7.62 mm x 39 mm, 122.7gr. MSC Type 56 Factory 31 | V50 | 3249 ft/s (990 m/s) | |
| 5.56 mm x 45 mm, 56gr. M193 | 5.56 mm x 45 mm, 56gr. M193 | P-BFS | 14.3 mm |
| 5.56 mm x 45 mm, 56gr. M193 | V50 | No Complete Penetrations |
Size & Weight Chart
SIZE | CURVATURE | CUT | WEIGHT |
6 x 6 | Single Curve | Full | 1.44 lbs / 0.65 kg |
6 x 8 | Single Curve | Full | 1.94 lbs / 0.88 kg |
8 x 10 | Multi-Curve | Shooter | 2.94 lbs / 1.33 kg |
8 x 10 | Multi-Curve | Full | 3.26 lbs / 1.48 kg |
10 x 12 | Multi-Curve | Shooter | 4.60 lbs / 2.09 kg |
10 x 12 | Multi-Curve | Full | 4.91 lbs / 2.23 kg |
SM | Multi-Curve | SAPI | 3.97 lbs / 1.80 kg |
MD | Multi-Curve | SAPI | 4.58 lbs / 2.08 kg |
LG | Multi-Curve | SAPI | 5.24 lbs / 2.38 kg |
XL | Multi-Curve | SAPI | 5.94 lbs / 2.70 kg |
Tolerances: +/- .25” – +/- 0.25 lbs
