IC4000 LEVEL III ICW PLATE

Features

  • Made with UHMWPE fabrics and special pressing techniques to create a lighter and thinner plate
  • NIJ 0101.06 Level III In-Conjunction with Soft Armor, Model IC4000

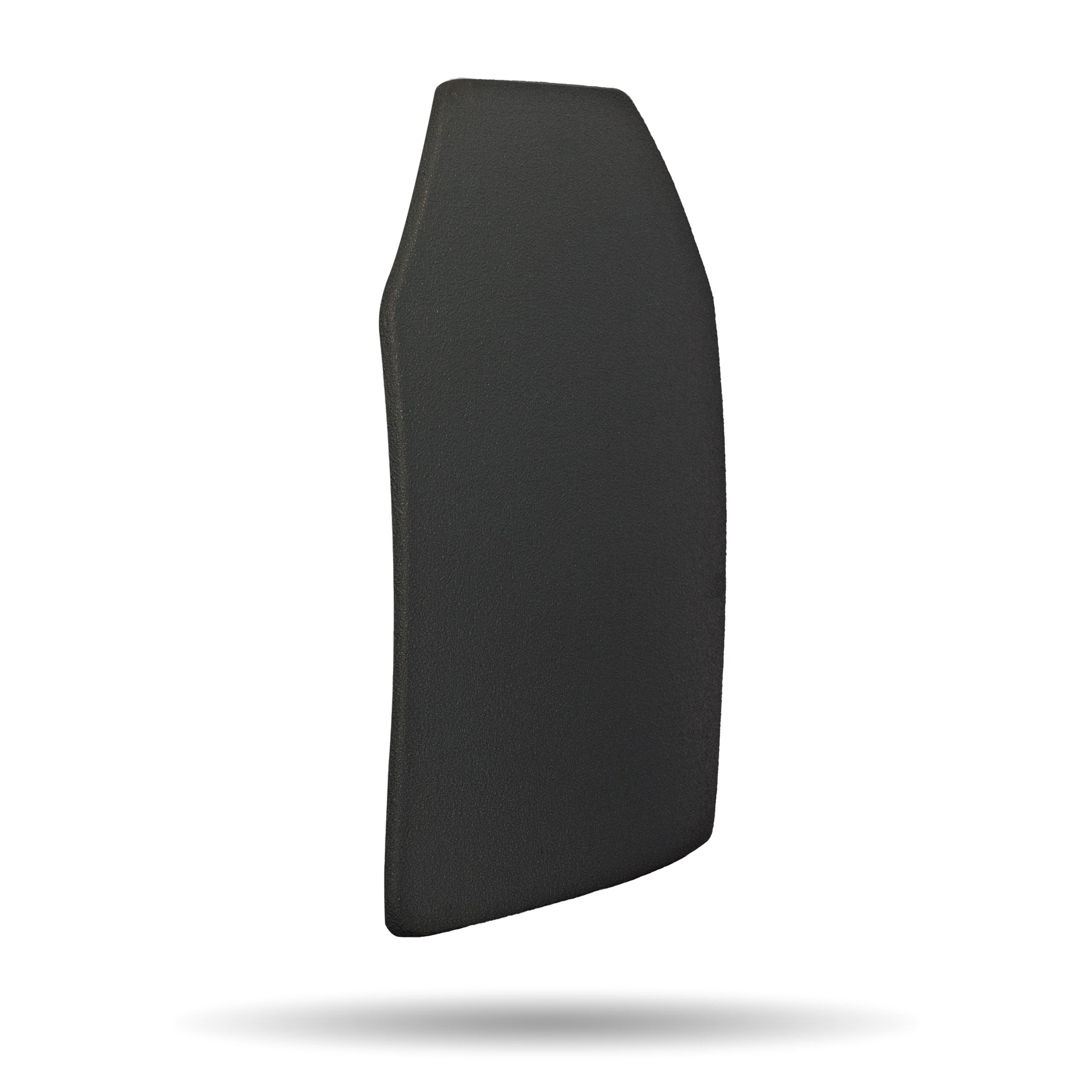

  • Multi Curve design fits to the contours of the body for maximum safety and comfort
  • Rugged, reliable, and stress fracture resistant
  • Fully sealed with Nylon to protect against harsh elements

Special Threat Performance

  • 5.56 x 45mm, 55gr, FMJ (M193)
  • 7.62 x 39mm, 123gr, MSC (M43)
  • 7.62 x 39mm, 123gr, MSC (Type 56)
  • 7.62 x 39mm, 123gr, FMJ (PS Ball)

Specifications

  • NIJ Level III ICW Soft Armor
  • Multi Curve
  • Thickness: (in): 0.40″
  • 10 year Warranty

Plate Cuts

Full Cut

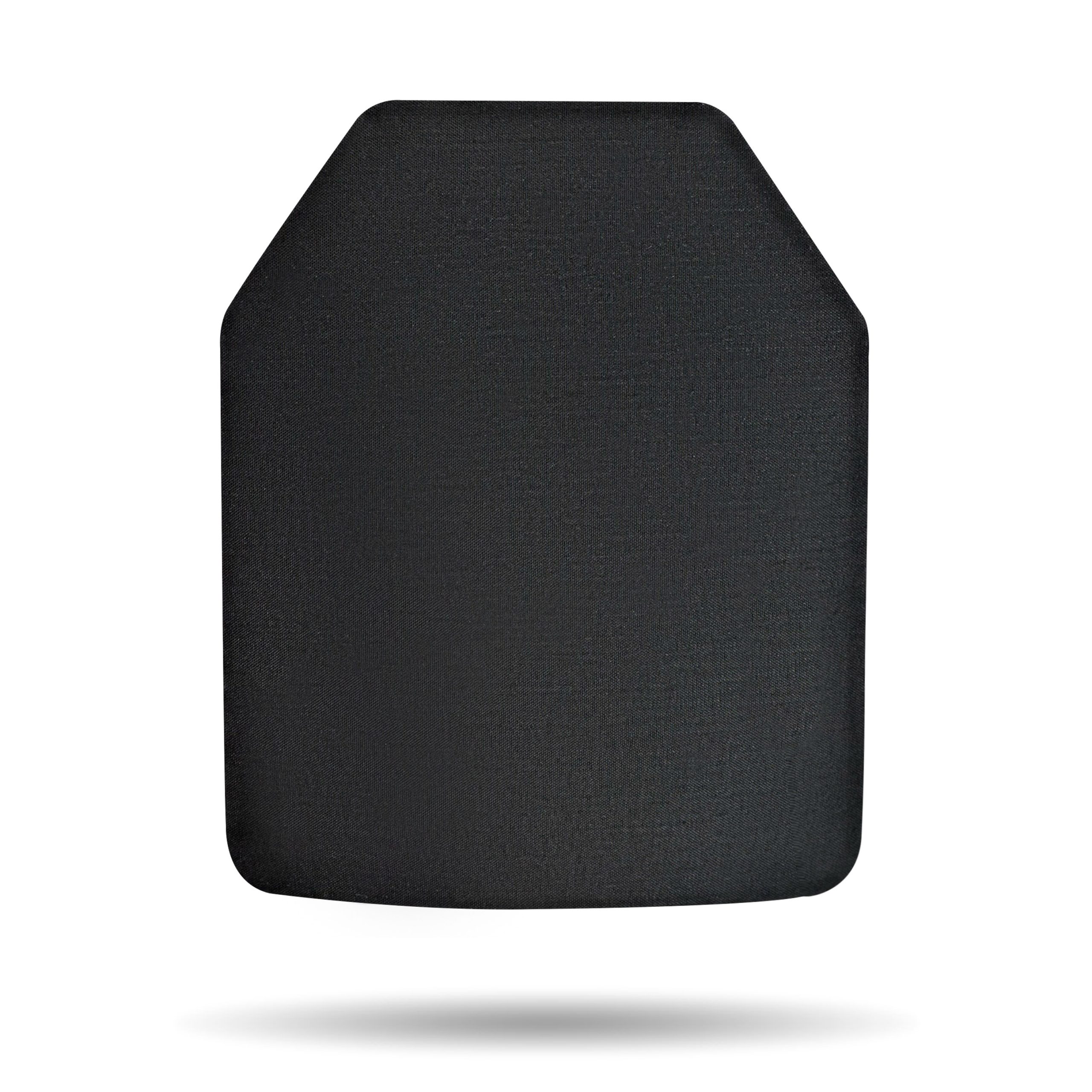

Shooter Cut
Swimmer Cut
SAPI Cut

Size and Weight Chart

SIZE

CURVATURE

CUT

WEIGHT

6 x 6

Multi Curve

Full

0.52 lbs / 0.26 kg

6 x 8

Multi Curve

Full

0.69 lbs / 0.31 kg

7 x 9

Multi Curve

Full

0.81 lbs / 0.37 kg

8 x 10

Multi Curve

Shooter

1.05 lbs / 0.48 kg

8 x 10

Multi Curve

Swimmer

0.98 lbs / 0.45 kg

10 x 12

Multi Curve

Shooter

1.65 lbs / 0.75 kg

10 x 12

Multi Curve

Swimmer

1.53 lbs / 0.69 kg

XS

Multi Curve

SAPI

1.15 lbs / 0.52 kg

SM

Multi Curve

SAPI

1.42 lbs / 0.64 kg

MD

Multi Curve

SAPI

1.64 lbs / 0.74 kg

LG

Multi Curve

SAPI

1.88 lbs / 0.85 kg

XL

Multi Curve

SAPI

2.13 lbs / 1.04 kg

Tolerances: +/_ .25” – +/_ 0.25 lbs
