601 BALLISTIC HELMET FC/HC

Features

  • High-performing, ultra-lightweight ACH/MICH helmet
  • NIJ Level IIIA and fragmentation protection
  • Independently tested by an NIJ-accredited laboratory per NIJ Standard 0106.01
  • Constructed with UHMWPE para-aramid fibers
  • Head protection: front, back, crown, and top of head
  • Options: rails, shroud, ISOFit Dial Harness

Harness/Padding Options

  • Standard: 4pt harness and 7 pad D3O Thrust Stealth Pad System
  • Premium: ISOFit Helmet Protection System w/micro-adjustment dial

Trim Options

  • Full cut and high cut

Warranty

  • 5 years on all ballistic material, excluding exterior cover, and 1 year on exterior cover material and workmanship

Colors

Black
Tan
Green

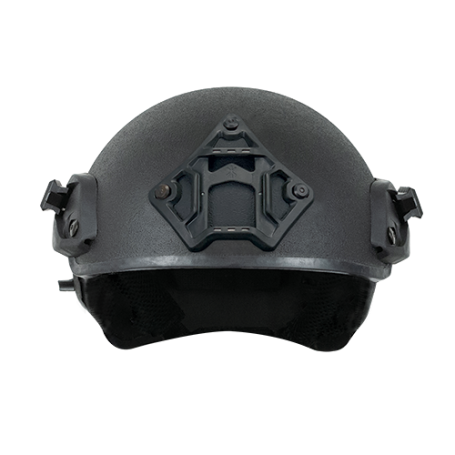

601 Ballistic Helmet with Shroud - High Cut - Black color - Front view

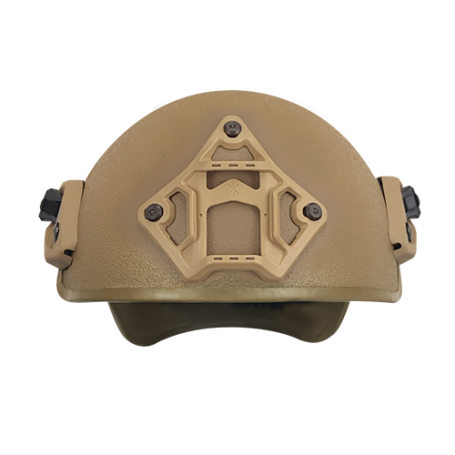

602 Ballistic Helmet with Shroud - High Cut - Tan color - Front view

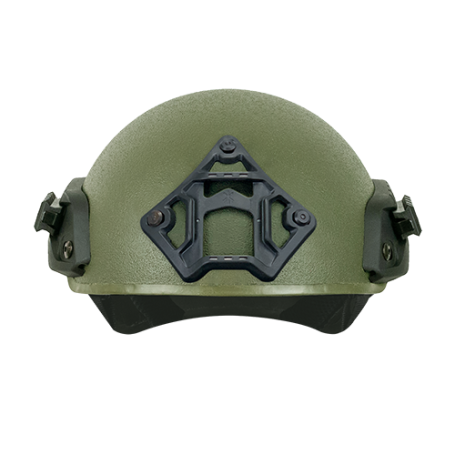

601 Ballistic Helmet with Shroud - High Cut - Green color - Front view

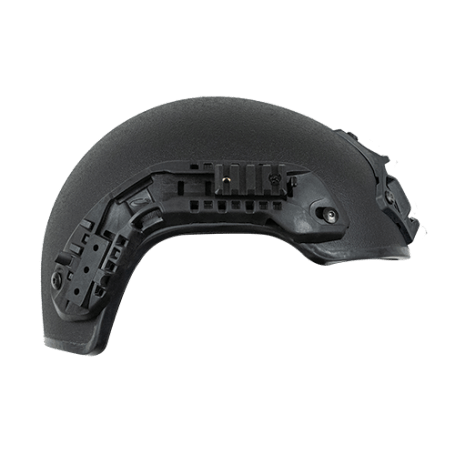

601 Ballistic Helmet with Shroud - High Cut - Black color - Side view

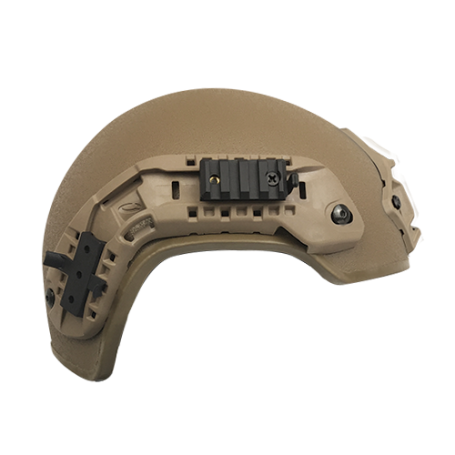

601 Ballistic Helmet with Shroud - High Cut - Tan color - Side view

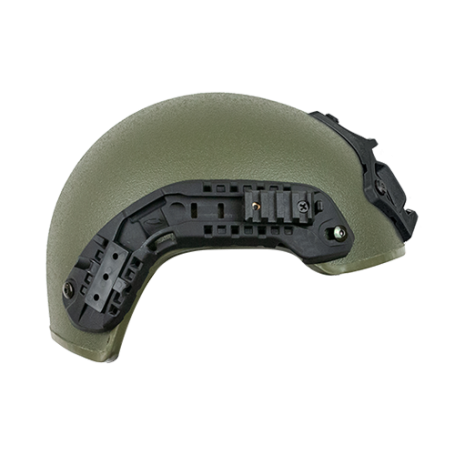

601 Ballistic Helmet with Shroud - High Cut - Green color - Side view

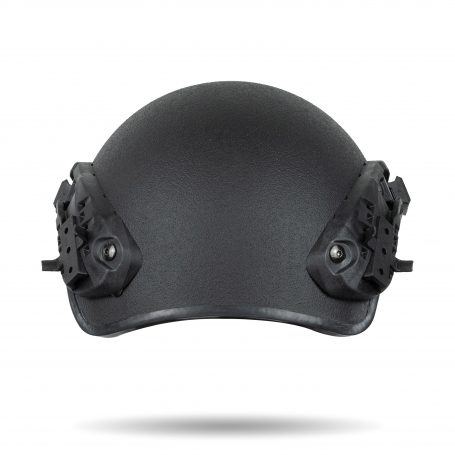

601 Ballistic Helmet with Rails - High Cut - Black color - Back view

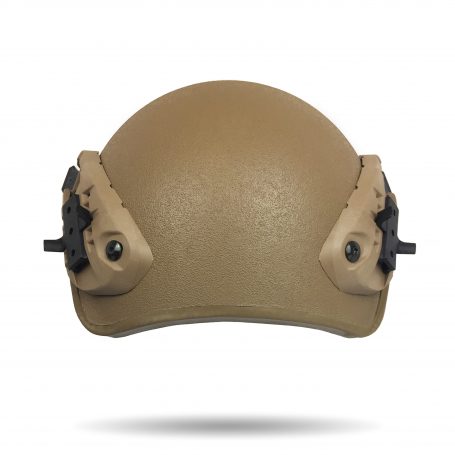

601 Ballistic Helmet with Rails - High Cut - Tan color - Back view

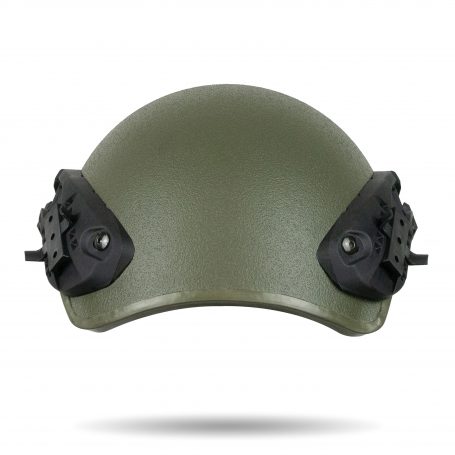

601 Ballistic Helmet with Rails - High Cut - Green color - Back view

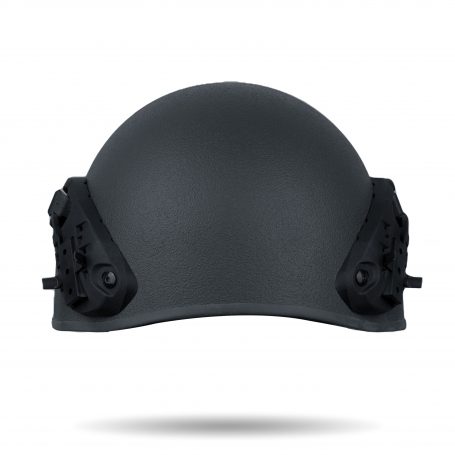

601 Ballistic Helmet with Rails - Full Cut - Black color - Back view

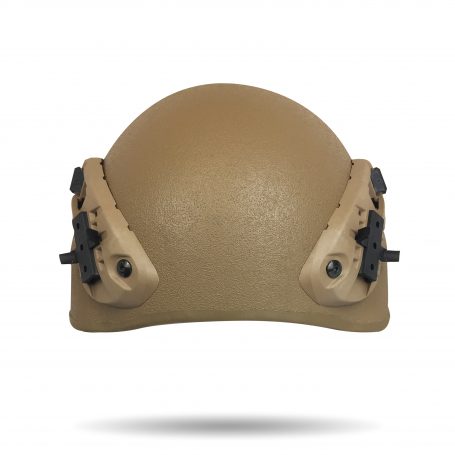

601 Ballistic Helmet with Rails - Full Cut - Tan color - Back view

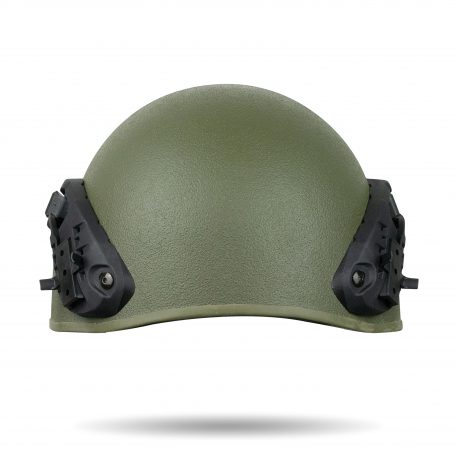

601 Ballistic Helmet with Rails - Full Cut - Green color - Back view

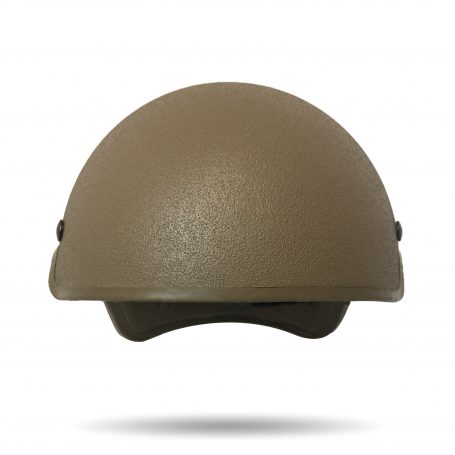

601 Ballistic Helmet - High Cut - Tan color - Front view

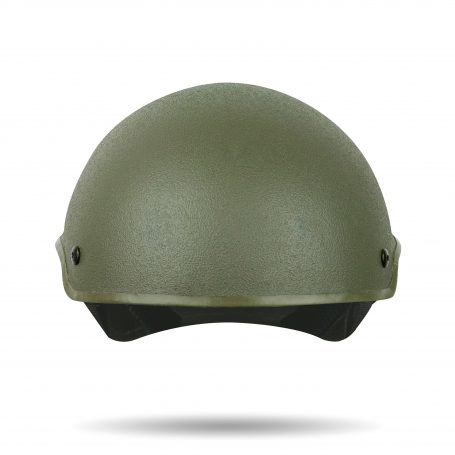

601 Ballistic Helmet - High Cut - Green color - Front view

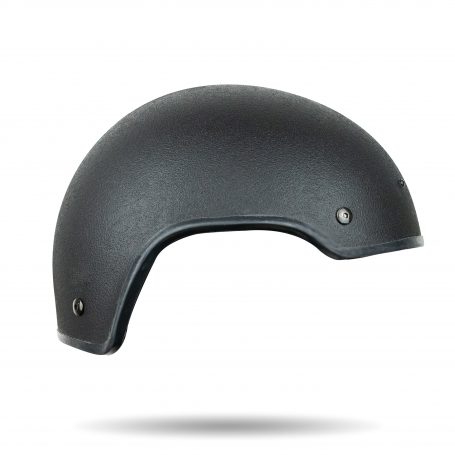

601 Ballistic Helmet - High Cut - Black color - Side view

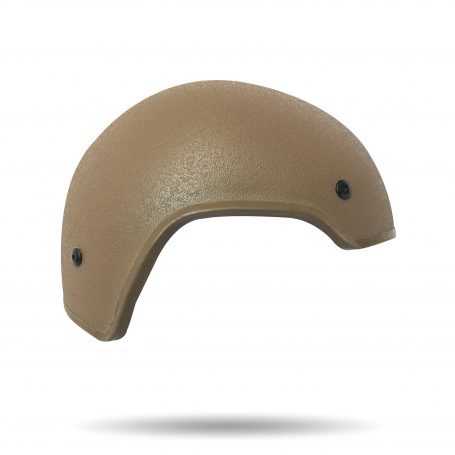

601 Ballistic Helmet - High Cut - Tan color - Side view

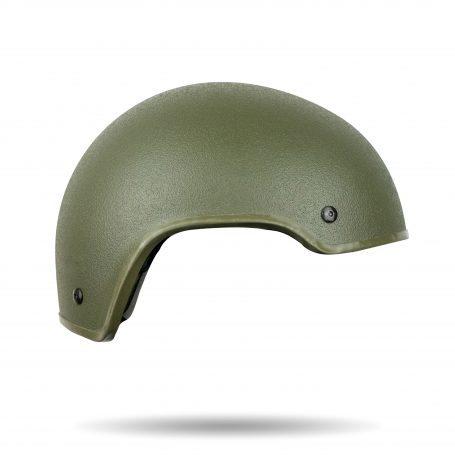

601 Ballistic Helmet - High Cut - Green color - Side view

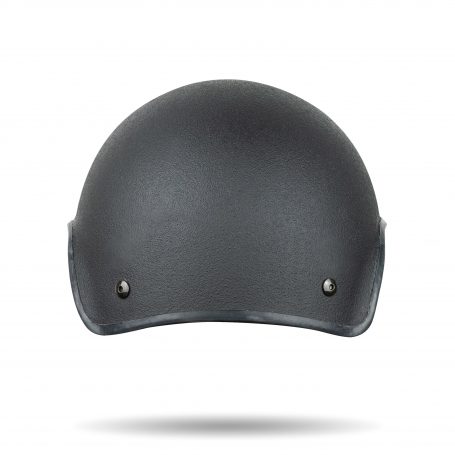

601 Ballistic Helmet - High Cut - Black color - Back view

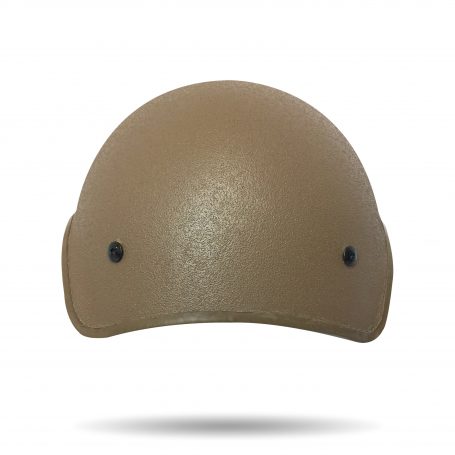

601 Ballistic Helmet - High Cut - Tan color - Back view

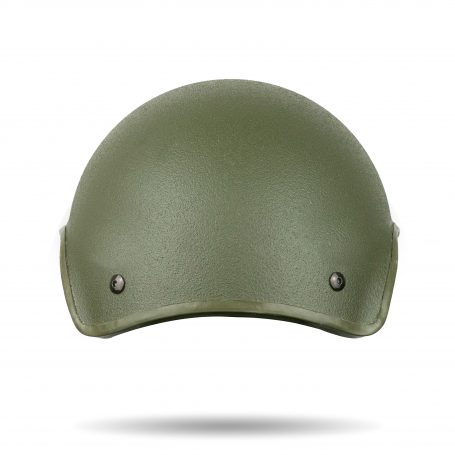

601 Ballistic Helmet - High Cut - Green color - Back view

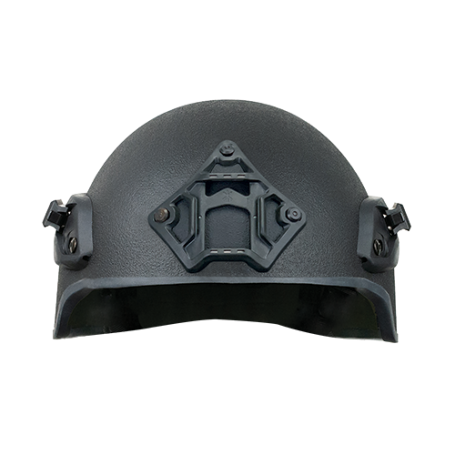

601 Ballistic Helmet with Shroud - Full Cut - Black color - Front view

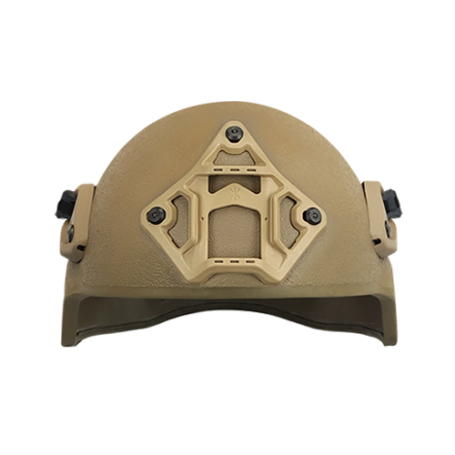

602 Ballistic Helmet with Shroud - Full Cut - Tan color - Front view

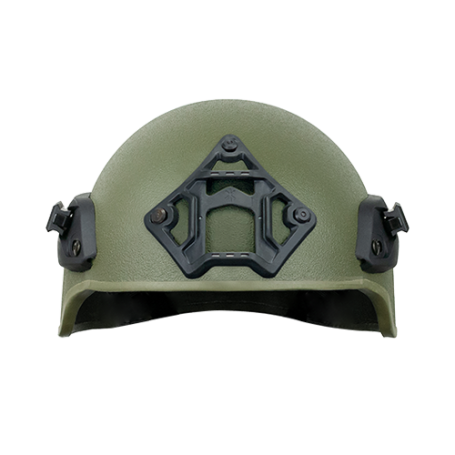

601 Ballistic Helmet with Shroud - Full Cut - Green color - Front view

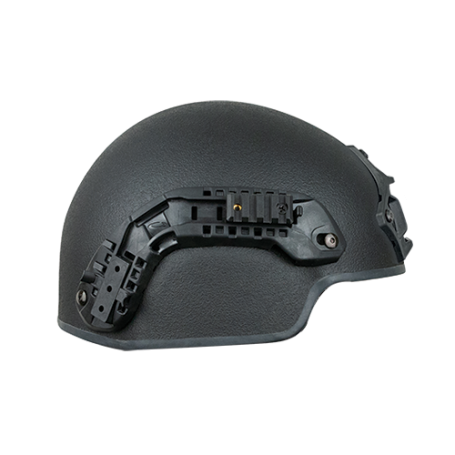

601 Ballistic Helmet with Shroud - Full Cut - Black color - Side view

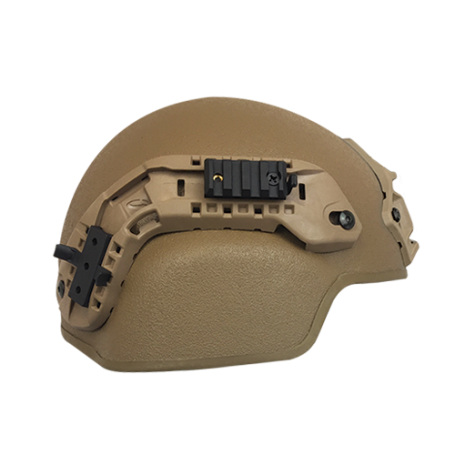

601 Ballistic Helmet with Shroud - Full Cut - Tan color - Side view

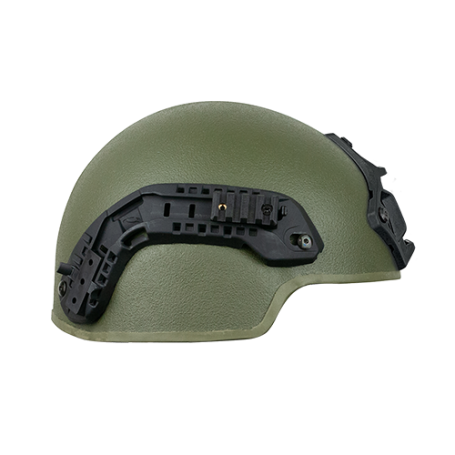

601 Ballistic Helmet with Shroud - Full Cut - Green color - Side view

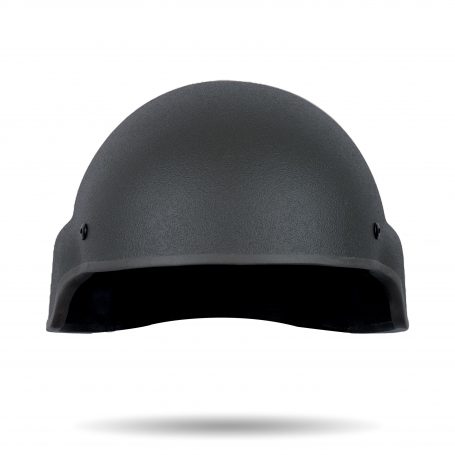

601 Ballistic Helmet- Full Cut - Black color - Front view

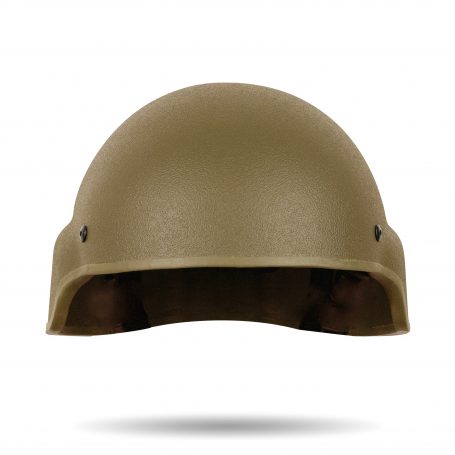

601 Ballistic Helmet- Full Cut - Tan color - Front view

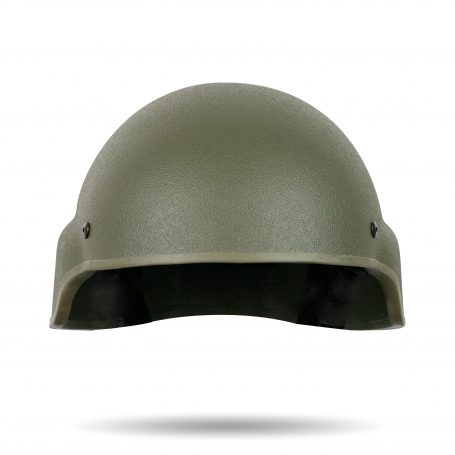

601 Ballistic Helmet- Full Cut - Green color - Front view

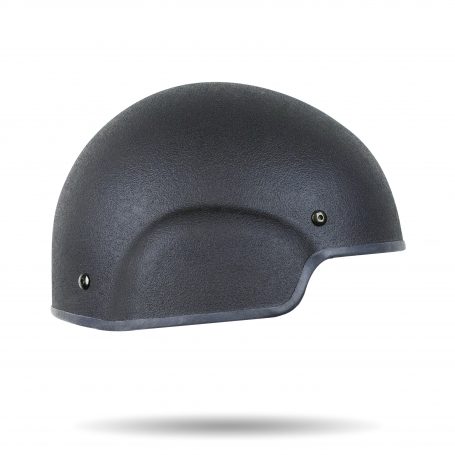

601 Ballistic Helmet- Full Cut - Black color - Side view

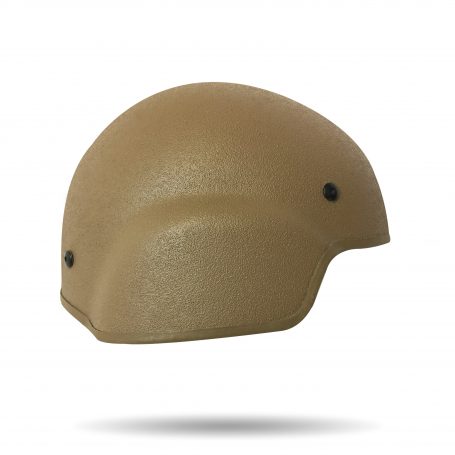

601 Ballistic Helmet- Full Cut - Tan color - Side view

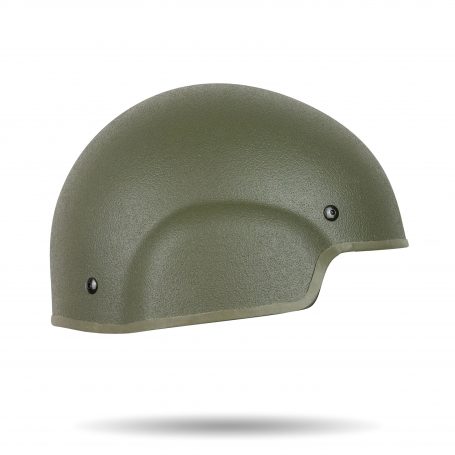

601 Ballistic Helmet- Full Cut - Green color - Side view

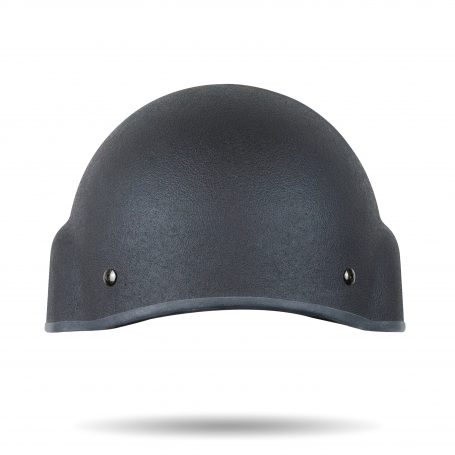

601 Ballistic Helmet- Full Cut - Black color - Back view

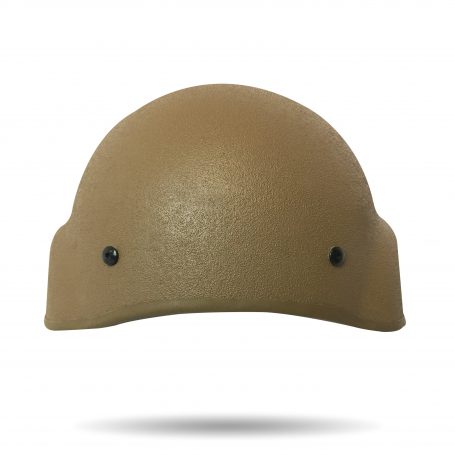

601 Ballistic Helmet- Full Cut - Tan color - Back view

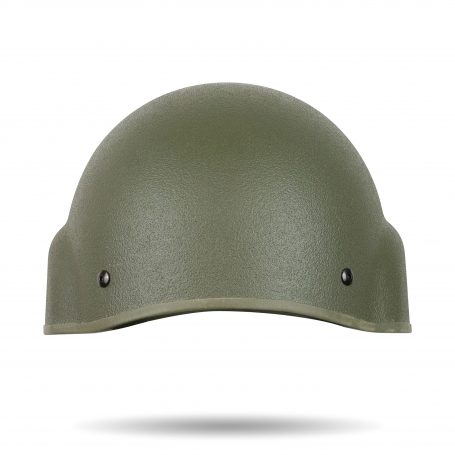

601 Ballistic Helmet- Full Cut - Green color - Back view
1/36
Contact Us

SIZE AND WEIGHT CHART

Size

Trim

Weight (lbs/kg)

Circumference (in)

SMALL

Full Cut

2.4 lbs / 1.08 kg

20.9" to 21.7"

SMALL

High Cut

2.1 lbs / 0.95 kg

20.9" to 21.7"

MEDIUM

Full Cut

2.5 lbs / 1.13 kg

21.7" to 22.5"

MEDIUM

High Cut

2.2 lbs / 1.01 kg

21.7" to 22.4"

LARGE

Full Cut

2.7 lbs / 1.22 kg

22.4" to 23.3"

LARGE

High Cut

2.4 lbs / 1.08 kg

22.4" to 23.3"

X-LARGE

Full Cut

3.0 lbs / 1.36 kg

23.3" to 24.5"

X-LARGE

High Cut

2.6 lbs / 1.18 kg

23.3" to 24.5"

WEAPON TYPE

Cartridge

Projectile

VEL (FT/S ± 30)

VEL (M/S ± 9)

9mm

124 gr FMJ

1430

436

40 S&W

180 gr FMJ

1155

352

.357 Sig

125 gr FMJ

1470

448

.357 Mag

158 gr JSP

1430

436

.44 Mag

240 gr SWCGC

1430

436

.44 Mag

240 gr SJHP

1430

436

V50

17 gr

2389

728

Download Specs
