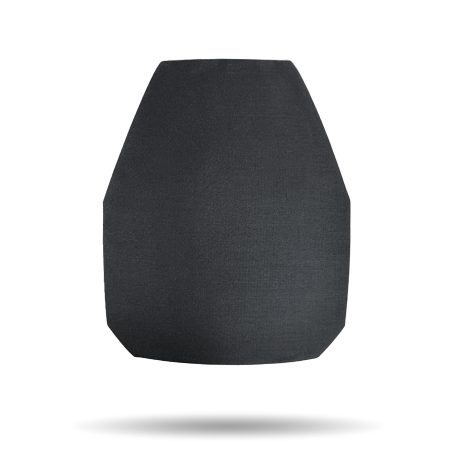

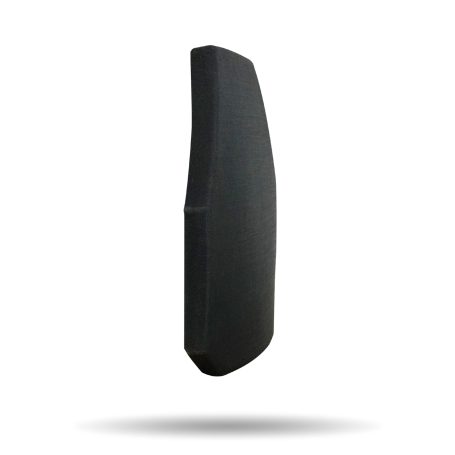

26605 Level IV Plate

Features

  • Durable, High performing, Multi-Curve, bullet resistant plate
  • NIJ Standard NIJ 0101.06 Level IV certified, stand alone
  • Manufactured from high-density alumina ceramic core (AI203)
  • Backed with layered woven aramid fiber
  • Finished in black Cordura nylon covering

Special Threat Performance

  • 5.56 x 45mm (M193 Ball)
  • 5.56 x 45mm (M855/SS109)
  • 7.62 x 39mm, M43 (MSC)
  • 7.62 x 39mm (API BZ)
  • 7.62 x 51mm (M-80 Ball)
  • 7.62 x 51mm (M61 AP)
  • 7.62 x 54R (LPS)
  • 7.62 x 54R B-32-API
  • 7.62 x 63mm AP M2 (30-06 M2)

Specifications

  • NIJ Level IV
  • Stand Alone
  • Multi-Curve
  • Thickness (in): 1.0″
  • 5 year Warranty

Plate Cuts

Full Cut
Shooter Cut
Swimmer Cut
SAPI Cut
1/2
Download Specs

Size and Weight Chart

SIZE

CURVATURE

CUT

WEIGHT

6 X 6

Multi Curve

Full

2.20 Lbs / 1.00 Kg

6 X 8

Multi Curve

Full

2.95 Lbs / 1.34 Kg

8 X 10

Multi Curve

Shooter

4.47 Lbs / 2.03 Kg

8 x 10

Multi Curve

Full

4.96 Lbs / 2.25 Kg

10 x 12

Multi Curve

Shooter

7.00 Lbs / 3.17 Kg

10 x 12

Multi Curve

Swimmer

6.90 Lbs / 3.13 Kg

10 X 12

Multi Curve

Full

7.47 Lbs / 3.39 Kg

SM

Multi Curve

SAPI

6.03 Lbs / 2.73 Kg

MD

Multi Curve

SAPI

6.97 Lbs / 3.16 Kg

LG

Multi Curve

SAPI

7.97 Lbs / 3.61 Kg

XL

Multi Curve

SAPI

9.04 Lbs / 4.10 Kg

Tolerances: +/_ .25” – +/_ 0.25 lbs
