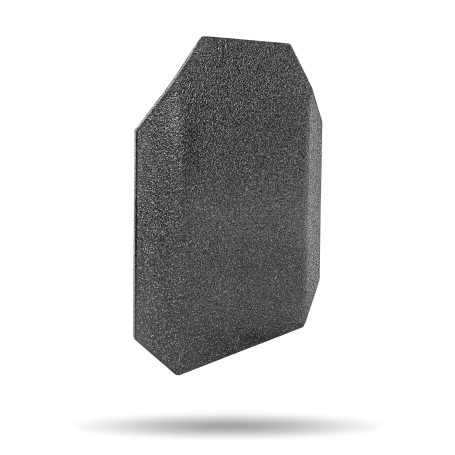

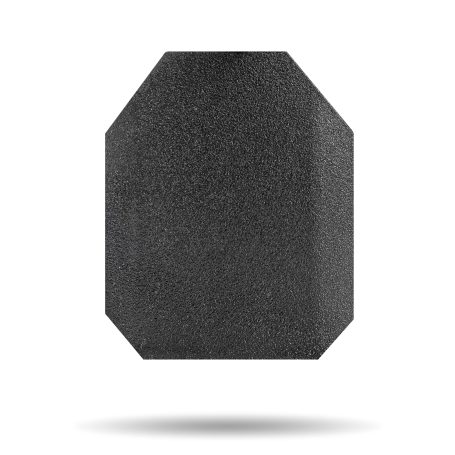

SS AR500 LEVEL III PLATES
Features
- AR500 Steel construction, polyurea coated exterior
- NIJ 0101.06 Certified Level III Stand Alone
- Upgrade Finish: Polyurea ballistic fragment spall and blast coating
- Cut: The 10” X 12” shooters cut plates are considered nominal and the actual measurement is 9.5” X 11.5”
Special Threat Performance
- 7.62 x 51mm (M-80 Ball)
Specifications
- NIJ Level III
- Stand Alone
- Thickness: 0.35″
- 10-year Warranty
Plate Cuts


Size and Weight Chart
SIZE | CURVATURE | CUT | WEIGHT |
6 x 6 | Single Curve | Full | 2.5 lbs / 1.1 kg |
6 x 8 | Single Curve | Full | 3.5 lbs / 1.6 kg |
8 x 10 | Single Curve | Full | 5.8 lbs / 2.6 kg |
8 x 10 | Single Curve | Shooter | 5.6 lbs / 2.5kg |
10 x 12 | Single Curve | Full | 8.7 lbs / 3.9 kg |
10 x 12 | Single Curve | Shooter | 7.5 lbs / 3.4kg |
Tolerances: +/_ .25” – +/_ 0.25 lbs
